Pequea TS24 / NOT AVAILABLE
Double tap to zoom
Rotary Rakes TS24
Get a Quote »
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send to a friend »
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

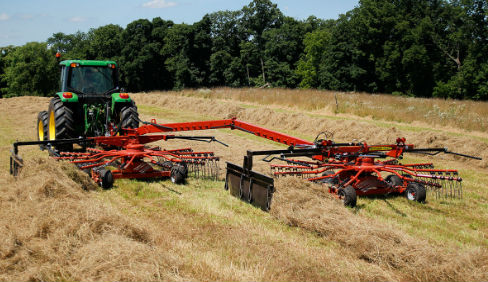

Pequea's HR-TS24 is is a dual rotor rake that can either be used to rake two separate windrows or one large windrow depending on your needs. The TS24 features two heavy duty 13 Arm rotors, a hydraulically adjustable curtain and lift cylinders under both rotors. This highly adaptable and versatile machine is the ultimate rotary rake.
Specifications
| Working Width | 15-27' |
| Raking Width | 13-24' |
| Transport Width | 100" |
| Gearbox | Sealed |
| Gear Reduction | 9.7:1 |
| Number of Rotors | 2 |
| Tine Arms per Rotor | 13 |
| Double Tines per Arm | 4 |
| PTO HP Requirement | 50 HP |
| Hydraulic Requirement | 8 GPM/1800 psi |
| Direction of Raking Action | Left |
| Weight | 3,840 |
| Axle | Walking Beams |
| Tire and Wheel | 18.5 x 8 Flotation Tire on 4 Bolt Painted Steel Rim |
