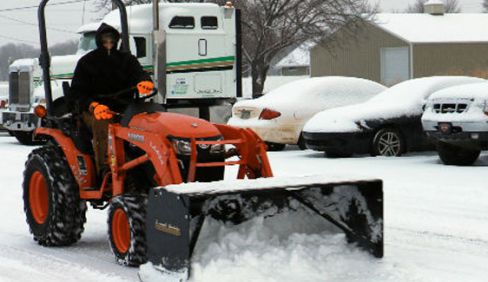

Land Pride SPL1084

Double tap to zoom

Features	Benefits
Universal quick-attach hitch	Quick and easy to hook-up. Fits tractor loaders with a universal quick-attach hitch.
1/4" Heavy side panels	Built heavy to handle the tough jobs.
Bracing on side panels and back	Reinforces side panels and back for a stronger unit.
1/4" Formed back plate at blade mount	Makes for a strong moldboard.
Reversible skid shoes	Skid shoes wear faster at the leading edge. Skid shoes that can be reversed will last longer than non-reversible skid shoes.
Replaceable skid shoes	Skid shoes can be replaced before side panels start to wear on the bottom edge.
Skid shoes are constructed of AR400 steel	Abrasion resistant material extends wear life.
Options
Adjustable rubber blade	The blade can be adjusted down as it wears to extend its life.
Reversible rubber or steel blades	The blades can be reversed to extend life fo the blades.
Replaceable rubber or steel blades	The blades can be replaced to extend the life of the Snow Pusher.
Pull back with 1/2" weld-on steel blade	Used to pull snow away from structures such as garage doors.
28" High orange marker (Accessory)	Assist in locating outer ends of the Snow Pusher when approaching buildings, trees, poles, and other obstacles that can damage equipment.

Model Numbers	SPL1084
Working width	30 ft3
Capacity (approximate)	26 ft³
Weight
with rubber blade	376 lbs
with steel blade	410 lbs
Weight of pull back option	142 lbs
Horsepower range	25-40 HP
Operating weight of carrier	3,000 lbs. Maximum
Lift capacity of carrier	1,200 lbs. Maximum at pivot pins
Hitch type	Universal quick-attach hitch
Skid shoes	AR400 1/2" x 4" reversible & replaceable
Moldboard thickness	10 Ga.
Side panel thickness	1/4"
Rubber blades (option)	1" x 8" Rubber with adjusting slots; Reversible and replaceable blade
Steel blades (option)	1/2" x 6" Reversible and replaceable blade(s)
Pull back (option)	1/2" x 4 3/8" Steel blade
Orange marker (accessory)	28" Tall, bolts to the side panels
