Land Pride RCBM6610

New Products / Land Pride / Rotary Cutters / RCB6610 Series Rotary Cutters / RCBM6610

Double tap to zoom



Features

Features Benefits
Surpassed rugged
industry standards		 All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing
procedures according to ISO 4254-13.
Factory assembled Saves customer set-up time and money.
7 Year gearbox warranty* Shows confidence in gearbox integrity. (Years 6 & 7, parts only.)
Rugged heavy built gearboxes Gearboxes are capable of handling heavy cutting applications.
Gearbox Seal Protection Gearbox bottom seal protection for longer bearing life.
2 3/8" Output gearbox shaft Large output shaft handles shock loads better.
2 Piece shield on wing gearboxes Driveline grease zerks are easier to access.
Self-leveling hitches Reduces drawbar wear by keeping hitch level while going through ditches.
Narrow A-frame hitch Allows for a tighter turning radius.
Adjustable park jack angle Park jack can be adjusted to be perpendicular to the ground.
Adjustable driveline hanger Serves as a support rest for the driveline when the cutter is unhooked from the tractor. Assist operator when attaching driveline to tractor PTO shaft.
Input driveline:
Cat. 6 CV or Cat. 5 Conventional		 Holds up to shock loads and harsh mowing conditions. Constant velocity (CV) U-joint allows
for 80 degree turns without doing damage to the driveline.
Grease zerks on end caps of  driveline cross journals Intermediate and wing driveline cross journals are easier to grease. All drivelines have access holes for greasing the U-joints and inner profiles.
4 Plate slip-clutch Protects drivelines and gearboxes by slipping clutches rather than twisting the driveline when impacts are encountered.
High blade tip speed Allows clean cutting of material and even distribution. See Specifications for actual FPM.
6" Blade overlap Eliminates skipping during turns.
High cutting capacity Can cut brushy areas with saplings up to 4 1/2".
Pre-cut chamber Allows grass and vegetation to stand back up prior to cutting for a more complete cut.
Reinforced leading edge Front of deck can withstand heavy brush and saplings.
12" Deck height Handles heavy cutting, which reduces balling-up of cut material under the deck.
10 gauge smooth deck top Reduces accumulation of debris and is easier and faster to clean.
7 Gauge smooth deck bottom Heavy deck design holds up to harsh conditions. No bottom obstructions.
Replaceable 1/4" side skirt Reduces debris piercing possibilities. Can be replaced if damaged.
3/16" Stump jumper backed with
a 1" thick mounting plate		 Heavy round stump jumper for protecting the gearbox seal and gearbox output shaft.
Can hold up to tough conditions.
Spindle Nut Protected Spindle nut and threads extending beyond the nut are guarded to protect against damage
from hitting solid objects.
Beveled skid shoes on wings Reduces gouging the ground when turning.
Hinged wing section Allows cutter to follow terrain. Ideal for rough ground where hillsides, ditches, and hollows can cause uneven cutting.
Greasable wing folding hinge Provides for a long hinge life and allows the wing to fold up and down with less stress.
1" Solid hinge rods Larger diameter hinge rod gives greater strength to the cutter and in the hinge area itself.
Wing transport lock pin Holds transport wing in the folded-up position in case of hydraulic pressure loss.
Collapsible 1" Leveling rods Prevents damage and failure to leveling rods. Large diameter leveling rods provide superior supporting strength over rough terrain.
Enclosed dual leveling rods Dual leveling rods enable the cutter to pull equally on the rear axle during travel over rough terrain. Many competitors only use one leveling rod.
5-Bolt hubs 5-Bolt hubs makes the wheel assembly more durable and longer lasting.
Drain holes in wheel rims Allows water to drain from wheels mounted on folded-up wing.
Helps prevent paint deterioration and rusting to the wheel rims.
Spring-cushioned trailing arms Provides independent suspension, cushions loads on drawbar.
Replaceable wheel spindles Wheel spindles can be replaced when damaged without replacing the entire axle. Simply
remove one bolt to replace damaged spindle.
Slow moving vehicle sign (SMV) Great for transporting on roadways and mowing along side roads.
Rear axle pull rings Aids in getting unit out of soft ground conditions.
Rephasing wing cylinder Allows the cutter to be leveled using wing cylinder verse mechanical turnbuckles.
Dual-acting wing cylinder Allows wing to be folded inward beyond 90o for a narrow 7'-5 1/4" transport width.
Wheel options Laminated tires: Eliminates flats.
Airplane tires without foam filling: Give better cushion while transporting.
Airplane tires with foam filling: Give better cushion while transporting & can’t go flat.
LP Performance hitch option Great for uneven terrain, reduces drawbar wear. Hitch pivots freely up and down and pivots about the tractor drawbar.
Bar-tite hitch option Ideal for extreme conditions. Clamps tight to drawbar eliminating drawbar wear
Roadway light kit option Allows operator to transport on public roads safer when head lights are turned on and/or when flasher lights are turned on.
Walking tandem axle option Allows for a smoother pull in undulating terrain.
Deck rings (optional) 1/2" x 3" full welded deck ring keeps blades from damaging the decks.
Mechanical Winch (optional) Aids in folding the cutter in the event of hydraulic failure.
Reverse Gearbox Rotation on
Center & Wing Deck (optional)		 Throws debris away from the road when cutting along side a road.

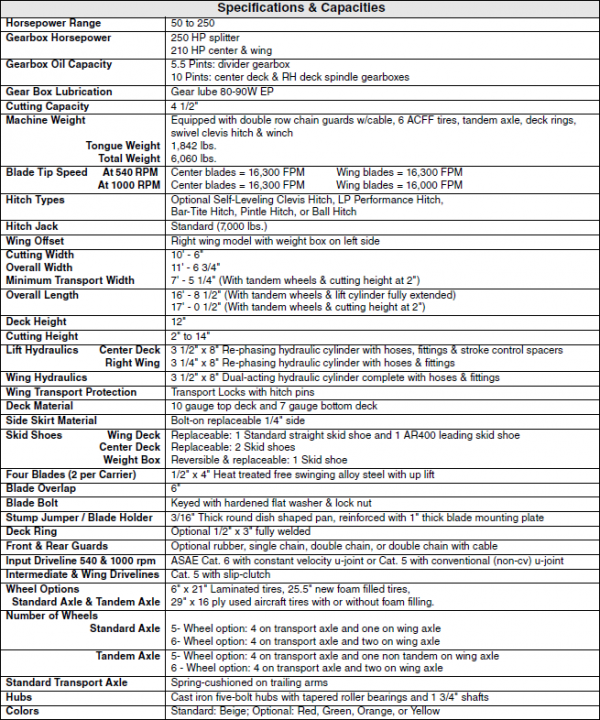

Specifications

RCBM6610
