Land Pride RC4015
RC4015 Rotary Cutters RC4015
Overview:
Combine the rugged, heavy-duty gearboxes from our RC5615 Cutter and the proven dependable deck from our RC3615 Cutter and you get the new Land Pride RC4015. The RC4015 features a 15' cutting width, 3.5" cutting capacity and heavy-duty gearboxes. The RC4015 is a solid medium-duty cutter in a long line of quality folding cutters from Land Pride.
Features
| Features | Benefits |
| Surpassed rugged industry standards |
All Land Pride Rotary Cutters have been designed and tested and meet rigorous voluntary testing procedures according to ISO 4254. |
| Factory assembled | Arrives for quick and easy set-up. Minimal time is wasted setting or prepping the unit. |
| 7 Year gearbox warranty* | Shows confidence in gearbox integrity. (6th & 7th year parts only) |
| Rugged heavy built gearboxes | Capable of handling heavy cutting applications. |
| Gearbox seal protection | Gearbox bottom seal protection for longer bearing life. |
| 2 Piece shield on wing gearboxes | Driveline grease zerks are easier to access. |
| LP Performance self-leveling hitch | Reduces drawbar wear by keeping hitch level while going through ditches. |
| Low hitch weight on tractor tongue | Ideal for smaller hp tractors by reducing the amount of weight on the drawbar |
| Narrow A-frame hitch | Allows for a tighter turning radius. |
| Adjustable park jack angle | Park jack can be adjusted to be perpendicular to the ground. |
| Adjustable driveline hanger | Serves as a support rest for the driveline when the cutter is unhooked from the tractor. Assist operator when attaching driveline to tractor power take-off shaft. |
| Input driveline: Cat. 6 CV or Cat. 5 Conventional |
Driveline is matched just right for capacity of tractor. Constant velocity (CV) U-joint allows for 80 degree turns without doing damage to the driveline. |
| Cat. 5 intermediate & Cat. 4 wing drivelines with slip-clutches |
Driveline is sized right for the intended cutting capacity. Slip-clutch will slip under load instead of twisting the driveline. |
| Grease zerks on end caps of driveline cross journals |
Intermediate and wing driveline cross journals are easier to grease. |
| High blade tip speed (See Specifications for actual FPM) |
Allows clean cutting of material. |
| 6" Blade overlap | Eliminates skipping during turns. |
| Left wing rotates clockwise | Better discharge of material. Picks up tractor tracks. |
| 3/16" Round stump jumper | Standard thick stump jumper material keeps damage to a minimum. |
| Smooth top design | Reduces accumulation of debris and is easier and faster to clean. |
| Deck sheet tops are 100% welded | Makes center decks and wing decks stronger. |
| 1/4" Sidewall thickness | Increased thickness reduces damage from objects being thrown into deck sidewalls. |
| Beveled skid shoes on wings | Reduces gouging the ground when turning. |
| Hinged wing sections | Allows cutter to follow terrain. Ideal for rough ground where hillsides, ditches and hollows can cause uneven cutting. |
| 1" Solid hinge rods | Larger diameter hinge rod gives greater strength to the cutter from front to rear, and in the hinge area itself. |
| Wing transport locks | Wing transport locks securely hold the wings in the folded position in case of hydraulic failure. |
| Enclosed front to rear dual leveling rods |
Dual leveling rods enable the cutter to pull equally on the rear axle during travel over rough terrain. |
| 5-Bolt hubs | 5-Bolt hubs makes the wheel assembly more durable and longer lasting. |
| Spring cushioned center-axle | Protects unit from bumps and ground shock. |
| Replaceable wheel spindles | Wheel spindles can be replaced when damaged without replacing entire axle assembly. |
| LED Signal lights | LED lights are bright, long lasting, and resistant to vibration, unlike incandescent counterparts. |
| Wheel options | Laminated tires: Eliminates flats. Airplane tires without foam filling: Give better cushion while transporting. Airplane tires with foam filling: Give better cushion while transporting and can’t go flat. |
| LP Performance hitch option | Great for uneven terrain, reduces drawbar wear. Hitch pivots freely up and down and pivots about the tractor drawbar. |
| Double swivel hitch option | Great for uneven terrain, reduces drawbar wear. Hitch pivots freely up and down and pivots about the tractor drawbar. |
| Bar-tite hitch option | Ideal for extreme conditions. Clamps tight to drawbar eliminating drawbar wear. |
| Deck ring option | Keeps blades from damaging the deck. |

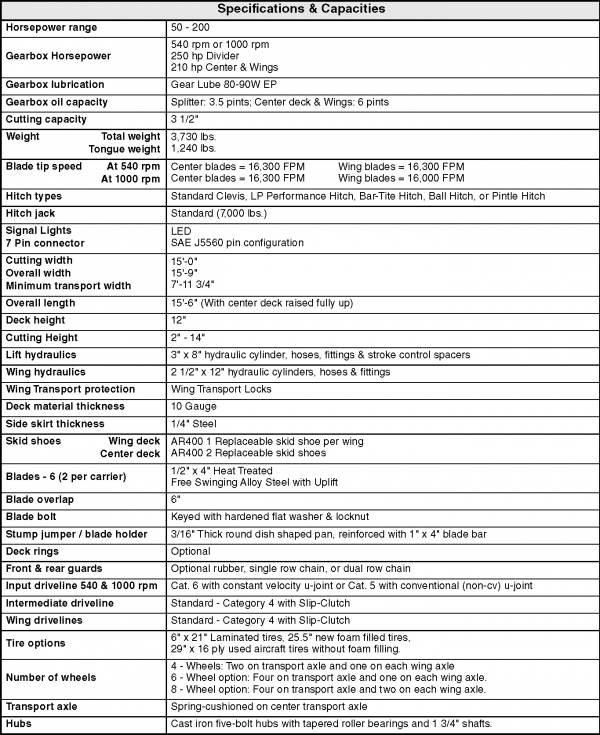

Specifications
